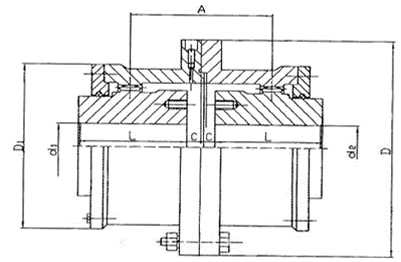

| 鼓形齒式聯軸器 >> CL型齒式聯軸器
|
|
型號 |
公稱轉距
Tn
N·m |
軸孔直徑 |
軸孔長度 |
D |
D1 |
A |
C |
質量
Kg |
|
Y，J1，Z1 |
|
d1,d2,d3 |
L |
|
CL1 |
710 |
18,19 |
30,42 |
170 |
110 |
49 |
16.0 |
7.8 |
|
20,22,24 |
38,52 |
6.0 |
|
25,28 |
44,62 |
2.5 |
|
30-40 |
60-112 |
|
CL2 |
1400 |
30,32,35,38 |
82,60 |
185 |
125 |
75 |
2.5 |
12.5 |
|
40-50 |
84-112 |
|
CL3 |
3150 |
40-56 |
112,84 |
220 |
150 |
92 |
2.5 |
26.9 |
|
60 |
142,107 |
|
CL4 |
5600 |
45-56 |
112,84 |
250 |
175 |
125 |
2.5 |
34.9 |
|
60-75 |
142,107 |
|
CL5 |
8000 |
50-90 |
84-172 |
290 |
200 |
145 |
5.0 |
55.8 |
|
CL6 |
11200 |
60-110 |
107-212 |
320 |
230 |
160 |
5.0 |
79.9 |
|
CL7 |
18000 |
65-75 |
142,107 |
350 |
260 |
185 |
5.0 |
109.5 |
|
80-120 |
132-172 |
|
CL8 |
22400 |
80-95 |
172,132 |
380 |
315 |
210 |
5.0 |
133.8 |
|
100-140 |
167-252 |
|
CL9 |
28000 |
90,95 |
172,132 |
430 |
365 |
220 |
5.0 |
171.0 |
|
100-160 |
167-302 |
|
CL10 |
50000 |
110-180 |
167-302 |
490 |
420 |
245 |
5.0 |
275.8 |
|
CL11 |
71000 |
120,125 |
212,167 |
545 |
470 |
280 |
5.0 |
385.0 |
|
130-220 |
202-352 |
|
CL12 |
100000 |
140,150 |
252,202 |
590 |
520 |
350 |
5.0 |
540.0 |
|
160-250 |
242-410 |
|
CL13 |
140000 |
160-280 |
242-470 |
680 |
590 |
375 |
7.5 |
798.3 |
|
CL14 |
200000 |
180-320 |
242-470 |
730 |
650 |
405 |
7.5 |
976.6 |
|
CL15 |
250000 |
220-360 |
282-550 |
780 |
700 |
480 |
7.5 |
1182.5 |
|
CL16 |
335000 |
240-400 |
330-650 |
900 |
785 |
535 |
10.0 |
1936.0 |
|
CL17 |
560000 |
260-450 |
330-650 |
1000 |
885 |
625 |
10.0 |
2700.0 |
|
CL18 |
710000 |
300-500 |
380-650 |
1100 |
990 |
710 |
10.0 |
3669.0 |
|
CL19 |
1000000 |
360-560 |
450-800 |
1250 |
1090 |
730 |
15.0 |
5138.0 |
|
