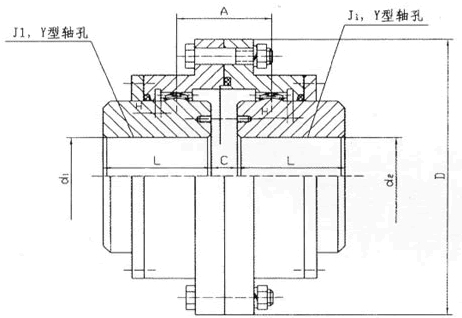

| 鼓形齒式聯軸器 >> GⅡCL型鼓形齒式聯軸器
|
|
型號 |
公稱轉距
Tn
N·m |
軸孔直徑 |
軸孔長度 |
D |
H |
A |
C |
質量
Kg |
|
Y，J1 |
|
d1,d2 |
L |
|
GIICL1 |
355 |
14-35 |
38-82 |
103 |
2.0 |
36 |
8 |
3.1 |
|
GIICL2 |
630 |
16-45 |
38-112 |
115 |
2.0 |
42 |
8 |
3.5 |
|
GIICL3 |
1000 |
22-56 |
38-112 |
127 |
2.0 |
44 |
8 |
7.0 |
|
GIICL4 |
1600 |
38-65 |
60-142 |
149 |
2.0 |
49 |
8 |
12.2 |
|
GIICL5 |
2800 |
40-75 |
84-142 |
167 |
2.5 |
55 |
10 |
18.0 |
|
GIICL6 |
4500 |
45-90 |
84-172 |
187 |
2.5 |
56 |
10 |
26.5 |
|
GIICL7 |
6300 |
50-105 |
84-212 |
204 |
3.5 |
60 |
10 |
39.2 |
|
GIICL8 |
9000 |
55-115 |
84-212 |
230 |
3.0 |
67 |
12 |
49.7 |
|
GIICL9 |
14000 |
60-135 |
107-252 |
256 |
3.0 |
69 |
12 |
79.6 |
|
GIICL10 |
20000 |
65-150 |
107-252 |
287 |
3.5 |
78 |
14 |
101 |
|
GIICL11 |
31500 |
70-175 |
107-302 |
325 |
3.5 |
81 |
14 |
161 |
|
GIICL12 |
45000 |
75-200 |
107-352 |
362 |
4.0 |
89 |
16 |
213 |
|
GIICL13 |
63000 |
150-225 |
202-352 |
412 |
4.5 |
98 |
18 |
315 |
|
GIICL14 |
100000 |
170-250 |
242-410 |
462 |
5.5 |
172 |
22 |
476 |
|
GIICL15 |
160000 |
190-285 |
282-470 |
512 |
5.5 |
182 |
22 |
696 |
|
GIICL16 |
224000 |
220-320 |
282-470 |
580 |
7.0 |
209 |
28 |
913 |
|
GIICL17 |
315000 |
250-365 |
330-550 |
644 |
7.0 |
198 |
28 |
1322 |
|
GIICL18 |
450000 |
280-400 |
380-650 |
726 |
8.0 |
222 |
28 |
1948 |
|
GIICL19 |
630000 |
300-470 |
380-650 |
818 |
8.0 |
232 |
32 |
3026 |
|
GIICL20 |
900000 |
360-540 |
450-800 |
928 |
10.5 |
247 |
32 |
3984 |
|
GIICL21 |
1250000 |
400-600 |
540-800 |
1022 |
11.5 |
255 |
40 |
4977 |
|
GIICL22 |
1600000 |
450-680 |
540-800 |
1134 |
13.0 |
262 |
40 |
7738 |
|
GIICL23 |
2240000 |
500-770 |
680-800 |
1282 |
14.5 |
299 |
50 |
10783 |
|
GIICL24 |
3150000 |
560-880 |
680-900 |
1428 |
16.5 |
317 |
50 |
15015 |
|
GIICL25 |
4000000 |
670-1040 |
900-1000 |
1644 |
19.0 |
325 |
50 |
24080 |
|
